Best 10x10x4 MERV 13 Furnace & HVAC Air Conditioner Filters

TL;DR

A 10x10x4 MERV 13 air filter is a four inch deep pleated filter for furnaces, air conditioners and HVAC systems. MERV 13 is our Optimal tier and Captures 98% of Airborne Particles. Filterbuy cuts the 10x10x4 to 9.5 by 9.5 by 3.63 inches, and that clearance is what lets it slide into a four inch cabinet.

Key Takeaways

• 10x10x4 is the nominal size, the name you order by. Filterbuy cuts it to 9.5 by 9.5 by 3.63 inches.

• MERV 13 is our Optimal tier, comparable to MPR 1500–1900 and FPR 10, and Captures 98% of Airborne Particles.

• MERV 8 Captures 90% of Airborne Particles and MERV 11 Captures 95% of Airborne Particles, so you’ve got three steps to pick from.

• A 10x10x4 needs a four inch filter cabinet. A one inch return grille won’t take it.

• Check your HVAC manual to confirm which tier your system takes, the same quick check you’d do on size.

What Is A 10x10x4 MERV 13 Air Filter?

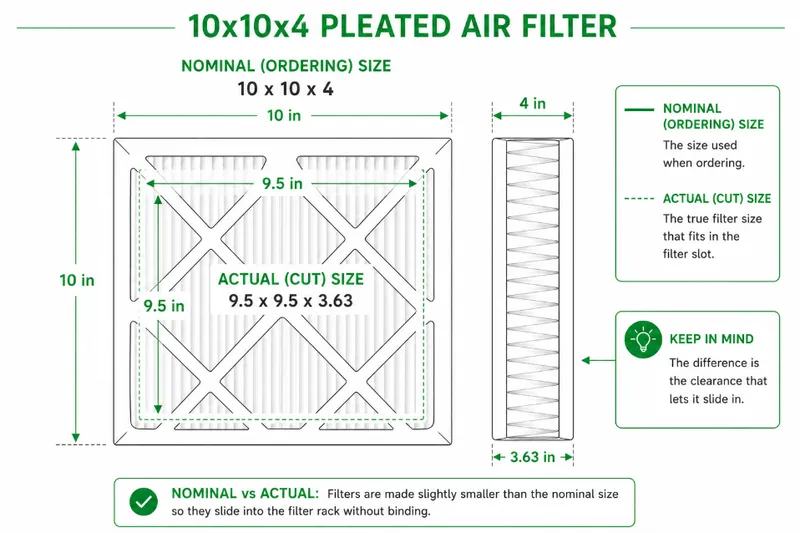

A 10x10x4 MERV 13 air filter is a pleated filter that sits on the return side of your furnace or AC. It measures 10 by 10 inches nominal with a four inch depth. Nominal is the ordering name, and the actual cut is smaller by design, because that clearance is what lets the filter slide in.

Filterbuy cuts four inch filters to 3.63 inches deep and half an inch under nominal on the face, so your 10x10x4 measures 9.5 by 9.5 by 3.63 inches. We cut, pleat and frame every filter to order in our own US plants, so those numbers come off our line rather than a catalog. Our air filter sizes chart lists them beside the nominal size.

How Do I Find My Filter Size?

Measure the old filter first. Round each dimension up to the nearest inch and that’s the size you order, so a filter measuring 9.5 by 9.5 by 3.63 inches is a 10x10x4. If there isn’t an old filter to go by, measure the slot instead.

Most people find their size in under a minute. Our guide on how to measure your air filter covers worn frames and odd slots. If your size isn’t listed, we cut custom air filters to the eighth of an inch.

Which MERV Tier Should I Choose?

MERV stands for Minimum Efficiency Reporting Value, the industry scale for how much a filter captures. Filterbuy makes the 10x10x4 in three tiers. MERV 8 is the standard choice for most homes, MERV 11 is built for allergy sufferers, and MERV 13 is our Optimal tier.

Each tier has a job. MERV 8 is the standard choice for most homes. MERV 11 is the tier for allergy sufferers, and it’s where pets and pollen land too. MERV 13 is the tier we point at smoke. If odors are the problem, our Odor Eliminator carbon filters handle those instead, because MERV rates solid particles and odor molecules pass straight through.

MPR and FPR are third-party rating systems developed by other companies, shown here for comparison. Our MERV ratings chart and scale lays out every level side by side.

Check your HVAC manual to confirm which tier your system takes. It’s the same quick check you’d do on size, and it takes about a minute.

I don’t want anyone to feel like they need an HVAC license just to pick the right filter. My job is to give you the straight answer, explain why it matters, and let you get back to your day.

Michelle Wan, Brand Manager and Air Quality Writer, Filterbuy

Which Systems Take A 10x10x4 Filter?

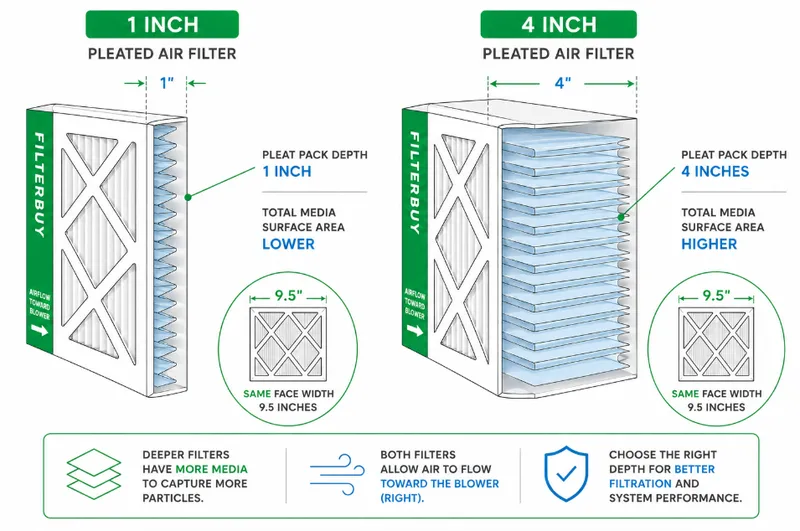

A 10x10x4 goes in a four inch filter cabinet, the deeper housing built into a return duct or air handler. Four inch depth won’t fit a one or two inch return grille, so check the rack before you order. Our guide to finding your HVAC filter location walks through every spot a filter hides.

A stack of thinner filters won’t fill a four inch cabinet, because the seams between frames let air slip past unfiltered. Filterbuy stocks four inch air filters in more than a hundred sizes, so there’s usually a stocked size that matches your rack.

How Often Should You Replace A 10x10x4 MERV 13 Filter?

Filterbuy publishes a three month replacement interval for this filter, and ENERGY STAR advises changing any filter at least that often. Your house sets the real schedule. Homes with pets go through filters faster, and so do homes near wildfire smoke.

Don’t guess. Hold the filter up to a light, and if light doesn’t pass through the pleats, replace it. A dirty filter stops doing its job well before it looks ruined, which is why an air filter subscription earns its keep. Filters show up when they’re due.

How To Buy 10x10x4 MERV 13 Filters In Packs And Bulk

Filterbuy sells the 10x10x4 MERV 13 air filter singly and in multi packs, and the per filter price drops as pack size rises. At a three month interval one slot uses four filters a year, so a four pack is a clean year’s supply.

Count your slots first, since three returns means twelve filters a year. Store spares flat and dry and they’ll keep fine until you need them. Fast and free 2-day delivery to most US states.

Supporting Statistics

1. Four inch filters loaded at roughly half the rate of one inch filters over a year of monitoring.

• Researchers tracked ten occupied homes for a full year.

• Deeper pleat packs collected dust more slowly than one inch filters of the same face size.

• The finding supports the longer service life of a four inch filter.

• Study: Lawrence Berkeley National Laboratory, a U.S. Department of Energy laboratory.

Source: Lawrence Berkeley National Laboratory, System Effects of High Efficiency Filters in Homes (LBNL-6144E)

2. Air conditioning runs in 88 percent of U.S. households, and two thirds use central equipment.

• Central equipment means shared ductwork and at least one filter slot.

• Individual units lead in half of Northeast households and carry no central filter.

• Sample: 18,496 households, the largest in the survey’s history.

Source: U.S. Energy Information Administration, 2020 Residential Energy Consumption Survey

3. Nearly 28 million people in the United States have asthma, about 8 in every 100.

• About 23 million adults and close to 5 million children under 18.

• Rates run highest among adults below the federal poverty level.

• Data: National Center for Health Statistics 2024 National Health Interview Survey.

Source: Asthma and Allergy Foundation of America, Asthma Facts

Frequently Asked Questions

What is the actual size of a 10x10x4 air filter?

Filterbuy cuts the 10x10x4 to 9.5 by 9.5 by 3.63 inches. Every pleated filter is built under its nominal label, and that clearance is what lets it slide in.

Will a 10x10x4 filter fit a 10x10x1 slot?

No. A 10x10x4 is 3.63 inches deep and needs a four inch cabinet. A one inch return grille can’t take it.

What’s the difference between merv 11 and merv 13?

MERV 11 is our Superior tier and Captures 95% of Airborne Particles. MERV 13 is our Optimal tier and Captures 98% of Airborne Particles. MERV 11 is built for allergy sufferers, and MERV 13 is the tier we point at smoke. Check your HVAC manual to confirm which tier your system takes.

Which way does the arrow point?

Toward the air handler, the same direction the air travels. Backward, the pleats aren’t braced the way they should be.

What if my size isn’t listed?

We cut custom sizes to the eighth of an inch, so send us the measurements and we’ll make it.

Glossary

Nominal Size. The size printed on the frame and the name you order by, such as 10x10x4.

Actual Size. What the filter really measures. Ours is 9.5 by 9.5 by 3.63 inches.

MERV. Minimum Efficiency Reporting Value, the industry scale for how much a filter captures.

MPR and FPR. Third-party rating scales other brands print on their packaging.

Filter Cabinet. The deeper housing in a return duct or air handler that holds a four inch filter.

Author And Review

Michelle Wan is Brand Manager and Air Quality Writer at Filterbuy, where she turns MERV ratings and HVAC efficiency into plain-English advice and fronts much of the brand’s educational video content. She holds a B.A. from the University of California, Santa Cruz, and works directly with our manufacturing teams.

Reviewed for HVAC and filtration accuracy by David Clark, Licensed HVAC Technician, Filterbuy HVAC Solutions.

Published September 2, 2026. Updated September 2, 2026.

Filterbuy is a second-generation, family-owned American manufacturer, not a reseller. We cut, pleat and frame every filter to order in our own US plants, in more than 600 sizes plus custom.
