Best 10x10x4 MERV 11 Furnace & HVAC Air Conditioner Filters

TL;DR

A 10x10x4 MERV 11 air filter is a four-inch-deep pleated filter with a nominal size of 10 x 10 x 4 inches, sized for the compact media cabinets on small furnaces, air handlers, and fan-coil units. Filterbuy cuts, pleats, and frames this size to order in our own US plants, and the finished filter measures 9.5 x 9.5 x 3.63 inches. MERV 11 captures 95% of airborne particles, and it's the tier we list for allergy sufferers.

Key Takeaways

• The number on the frame isn't the measurement. Order by the nominal size printed on your old filter and let the actual cut do the fitting. Filterbuy trims every filter slightly under nominal on purpose, and that clearance is what lets it seat.

• MERV 11 captures 95% of airborne particles. It sits in the middle of the three tiers Filterbuy makes in this size, and it's the tier we list for allergy sufferers.

• Depth is the reason to buy this size. A four-inch frame folds in far more media, the pleated material that does the catching, than a one-inch panel of the same face.

• 10x10x4 is a cabinet size. A four-inch filter needs a four-inch media cabinet, the deeper housing beside your air handler. It won't go into a one-inch return slot.

• Multi-packs cut the per-filter price by nearly half. A single Filterbuy 10x10x4 MERV 11 lists at $40.99, and a six-pack brings it to $21.83 each.

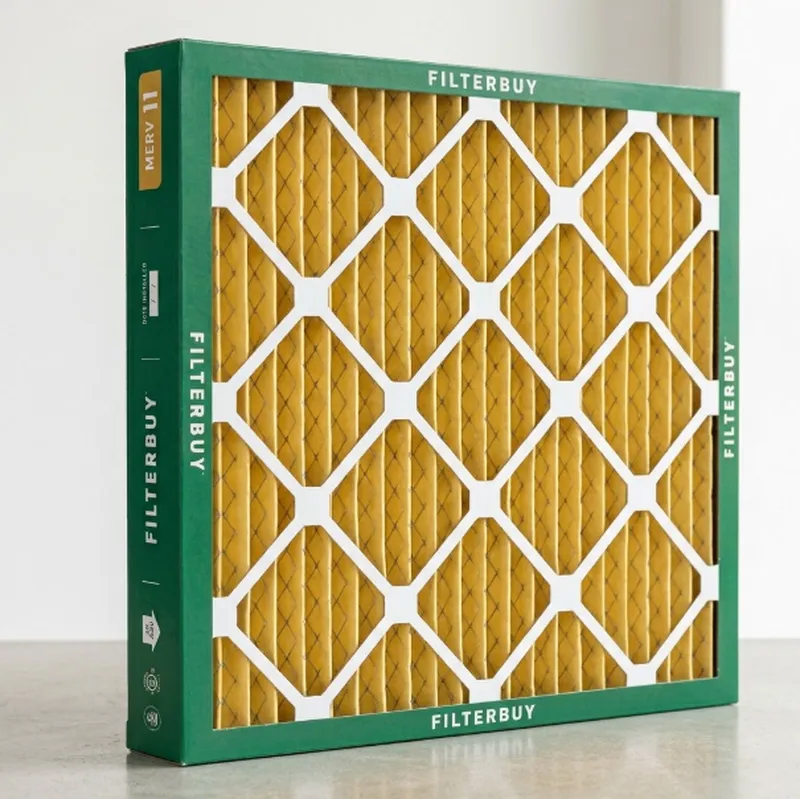

What Is A 10x10x4 MERV 11 Air Filter?

The 10x10x4 MERV 11 air filter is a pleated, electrostatically charged replacement filter for furnaces, air conditioners, heat pumps, and air handlers sized to a four-inch media cabinet. The 10x10x4 is the nominal size, written as length by width by depth in inches. MERV 11 is the efficiency tier, and it captures 95% of airborne particles.

This is one of the smaller sizes in the four-inch air filters family. It turns up on compact air handlers, closet-mounted furnaces, fan-coil units, and secondary zones rather than on the whole-home systems that take a 16x25x4. The face is small, so air moves through every square inch of media faster than it would in a large filter. That's what makes the four-inch depth worth having here.

Filterbuy filters are cut, pleated, and framed to order in our own US plants. The frame is beverage board, a stiff board built to hold its shape through heat and humidity, and a dual wire backing keeps the pleats evenly spaced. The same size comes in MERV 8 and MERV 13.

What Is The Actual Size Of A 10x10x4 Air Filter?

A Filterbuy 10x10x4 air filter measures 9.5 x 9.5 x 3.63 inches. Every filter is cut slightly under its nominal size so it slides into the rack without binding, and that clearance is what makes it fit. Measure your old filter, round each dimension up to the nearest inch, and order the nominal size you get.

The pattern is easiest to see with the whole 10x10 family side by side.

Compiled from Filterbuy published production specifications for the 10x10 nominal size, retrieved September 2026.

Pleat count per foot drops as the filter gets deeper, which surprises people who assume more pleats always mean more filtration. Each pleat in a four-inch frame runs far deeper than a pleat in a one-inch panel, so the total media area climbs even as the pleats sit farther apart. The full air filter sizes chart lists nominal against actual across the sizes Filterbuy cuts.

Depth buys you media. A Filterbuy 10x10x4 holds roughly 2.8 times as much pleated media as a 10x10x1 of the same face, even though it carries fewer pleats, because each one runs almost five times deeper. Those figures come from Filterbuy's published pleat and depth specs and they're deliberately conservative. Pleat count is a poor thing to shop on. Depth is the number that matters.

Check one thing before you order. Filterbuy trims to its own clearance and other makers trim to theirs, so a four-inch filter from another brand can measure differently at the same nominal size. Read the actual size printed on your current frame if your cabinet is a tight one.

How Does MERV 11 Compare To MERV 8 And MERV 13 In This Size?

MERV 11 sits in the middle of the three tiers Filterbuy makes in this size. MERV 8 captures 90% of airborne particles, MERV 11 captures 95%, and MERV 13 captures 98%. Each tier names the household it's built for, and the chart below puts the three side by side so you can pick in a few seconds.

Filterbuy MERV Tiers In 10x10x4

MPR and FPR are third-party rating systems published by other manufacturers and are shown for cross-shopping only. Check your HVAC manual for the MERV rating your system takes.

MERV 8 is the standard choice for most homes. MERV 11 is the tier we list for allergies and asthma, and for homes with pets or heavy pollen. MERV 13 is the tier for smoke. If odors are the main complaint, our Odor Eliminator filters use activated carbon instead. Our guide to which MERV rating to use goes deeper.

Whichever tier you choose, check your HVAC manual for the MERV rating your system takes, the same way you'd check the size. It's a one-minute look and it settles the question before you order.

MPR and FPR in the chart are third-party rating systems published by other manufacturers. They're there so you can cross-shop, and they aren't Filterbuy ratings.

Will A 10x10x4 Filter Fit Your System?

It fits if your system has a four-inch media cabinet and the slot measures roughly 9.5 by 9.5 inches. Pull the filter you have now and read the frame. If it says 10x10x4, you're set. If there's no filter to read, measure the slot opening and its depth, then round each dimension up. Most people settle this in under a minute.

Two numbers do different jobs here. The nominal size, 10x10x4, is the ordering name. The actual cut, 9.5 x 9.5 x 3.63 inches, is smaller by design, and that gap is what lets the filter seat without being forced. EPA guidance on home air cleaners and filters puts it simply. A filter should fit snugly, without air leaking around it and without being bent to fit.

If your slot only takes a one-inch filter, run a one-inch filter on a shorter schedule, or ask an HVAC technician about adding a media cabinet. And if your slot lands on an odd fraction, Filterbuy cuts custom air filters to the eighth of an inch.

How Long Does A 10x10x4 MERV 11 Filter Last?

Filterbuy rates the 10x10x4 MERV 11 for 90 days, which lines up with the EPA's note that manufacturers typically recommend replacing a filter every 60 to 90 days. Households with pets, allergy sufferers, or seasonal smoke should plan on the shorter end of that range.

Small filters fill up faster per square inch than large ones, which is why this size doesn't carry the longer interval quoted for a 20x25x4. The Filterbuy 20x25x4 has about five times the face area, so in a given house the same dust settles onto a fifth of the media. That catches out people moving from a big cabinet to a small one.

There's a simpler test than any calendar. Hold the filter up to a light. If light doesn't come through the pleats, swap it. Write the install date on the frame in marker when you put the new one in, and you won't have to guess.

Where To Buy 10x10x4 MERV 11 Air Filters

Order 10x10x4 MERV 11 air filters factory-direct at Filterbuy.com and you're buying from the people who made them. Delivery is fast and free 2-day to most US states, and the bulk tiers below cut the per-filter price by nearly half. Retail and marketplace listings don't carry those tiers.

Filterbuy 10x10x4 MERV 11 Pricing By Pack Size

List pricing on Filterbuy.com retrieved September 2026. Promotional discounts and the 5% auto-delivery reduction are applied at checkout and are not reflected above. Re-verify quarterly.

A two-pack suits a single small system. A six-pack covers a year at the 90-day interval. Auto-delivery takes another 5% off and sends the next one before it's due. You can shop the 10x10x4 MERV 11 air filters page directly.

You'll also find this size on Amazon, Walmart, Target, and Best Buy, where it's the same filter from the same plants. What changes is the pack sizes and the absence of the volume tiers above.

How 10x10x4 Pricing Compares With Larger Four-Inch Filters

The Filterbuy 10x10x4 MERV 11 and the 20x25x4 MERV 11 cost within a dollar of each other at six-pack pricing, $21.83 against $20.99, even though the larger filter has roughly five times the face area. Filter prices don't scale down with size, and that's worth knowing before you order.

Small Size, Large-Filter Price

Face areas calculated from Filterbuy published actual dimensions. Prices are Filterbuy.com list pricing at the six-pack tier, retrieved September 1, 2026. Re-verify quarterly.

If your air handler could take a bigger cabinet, it's worth asking a technician about. Four-inch economics improve sharply with face area, and a system retrofitted for a larger cabinet buys more media per dollar for as long as you own it.

If you're staying with the 10x10x4, fit matters more here than anywhere else in the line. You're paying large-filter money for a small amount of media, so a filter that seats badly and lets air slip around the edges wastes proportionally more of what you bought.

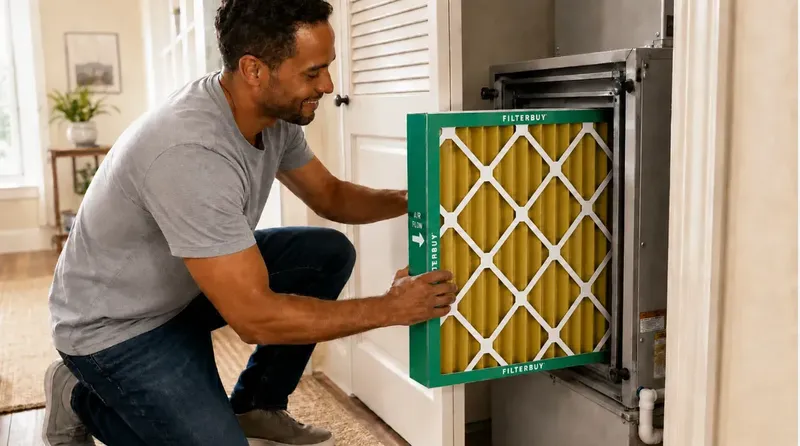

How To Install A 10x10x4 Air Filter

A Filterbuy 10x10x4 takes about two minutes to install and no tools. Airflow direction is the one step worth slowing down for, because the wire backing holds the pleats in one direction and a reversed filter can buckle.

1. Turn the system off at the thermostat.

2. Photograph the airflow arrow on the old filter before you pull it out. This is the thing our support team gets asked about most, and the photo settles it.

3. Slide the new filter in with the arrow pointing toward the furnace or air handler.

4. Turn the system back on.

Supporting Statistics

Three U.S. federal sources back the guidance above. Each figure was checked against its primary source in August 2026.

1. Pet allergens are in almost every U.S. home.

• More than half of U.S. households keep a dog, a cat, or both.

• Dog and cat allergens turn up in almost all U.S. homes, including homes with no pets, because the proteins travel indoors on clothing.

• Why it matters here: MERV 11 is the tier Filterbuy lists for allergy sufferers, and it's where households with pets usually land.

Source: NIEHS research on pet allergens.

2. Two-thirds of U.S. households run a central, ducted system.

• 88% of U.S. households use air conditioning.

• Two-thirds use central AC or a central heat pump as their main equipment, across a 2020 survey of 18,496 households.

• Why it matters here: a central system means ducts, a blower, and a filter housing. That's what the Filterbuy 10x10x4 is built for.

Source: the EIA Residential Energy Consumption Survey summary.

3. Federal guidance says inspect the filter monthly.

• Check the filter once a month in a central air conditioner, furnace, or heat pump, and act when it looks dirty rather than waiting on the calendar.

• Dirt and neglect are named as the top causes of heating and cooling system failure.

• Why it matters here: read the 90-day figure on this page as a default and let the light test decide.

Source: ENERGY STAR guidance on HVAC maintenance.

Frequently Asked Questions

Is a 10x10x4 air filter really 4 inches thick?

No. A Filterbuy 10x10x4 measures 3.63 inches deep. The 4 on the frame is the nominal size, the rounded name you order by, and the actual cut runs smaller by design so the filter seats without being forced. Measure the depth of your old filter, cardboard edge to cardboard edge, before you order.

What MERV rating should i get for a 10x10x4?

MERV 8 is the standard choice for most homes. MERV 11 is the tier Filterbuy lists for allergies and asthma, and for homes with pets or heavy pollen. MERV 13 is the tier for smoke. Check your HVAC manual for the MERV rating your system takes, the same way you'd check the size.

Which filter do you list for allergy sufferers?

MERV 11. It captures 95% of airborne particles and it's the tier we list for allergy sufferers, and for homes with pets or heavy pollen. If you have questions about allergies or asthma, talk to a qualified healthcare professional.

Can i use a 10x10x1 instead of a 10x10x4?

Only if your system was built for a one-inch filter. The two aren't interchangeable. A one-inch panel dropped into a four-inch cabinet leaves a gap that air flows straight through, and a four-inch filter won't go into a one-inch slot at all. If your slot is the shallow kind, order 10x10x1 air filters instead.

What does a 10x10x4 merv 11 filter cost per year?

At the 90-day interval you buy four filters a year. At Filterbuy six-pack pricing of $21.83, that's about $87.32 a year before the auto-delivery discount.

Can i get this size at a hardware store?

Sometimes, but small square sizes are the ones big-box shelves are least likely to carry, and a store that stocks it usually carries one MERV rating.

Glossary

• MERV. Minimum Efficiency Reporting Value, the industry scale for how much an air filter captures. Higher numbers capture more. Our primer on MERV ratings, charts and scales covers the full range.

• ANSI/ASHRAE Standard 52.2. The engineering test method behind the MERV ratings sold in the United States. The EPA keeps a plain-English explainer of MERV if you want the background.

• Nominal size. The rounded dimensions printed on a filter frame, such as 10x10x4. It's the name you order by.

• Actual size. What the filter really measures, 9.5 x 9.5 x 3.63 inches for a Filterbuy 10x10x4. This is the number that decides whether it fits.

• Media cabinet. The deeper housing beside a furnace or air handler that holds a four-inch or five-inch filter. A one-inch return slot is a different thing.

• Pleated filter. A filter whose media is folded into pleats, which packs more surface area into the same frame than a flat panel would.

• Electrostatic media. Filter media carrying an electrical charge, so it attracts and holds particles as well as trapping them mechanically.

• MPR and FPR. Microparticle Performance Rating and Filter Performance Rating, two third-party scales published by other manufacturers. They're useful for cross-shopping, and they aren't Filterbuy ratings.



Written by Michelle Wan. Reviewed by David Clark, Licensed HVAC Technician.

Last reviewed and updated September 2026. Pricing and specifications reviewed quarterly.
