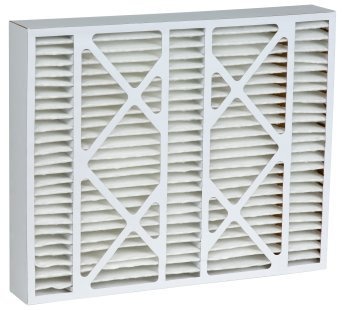

MERV 13 20x20x5 BDP Air Filter Catches What You Can't See

We pulled a used MERV 13 deep pleat filter off the line once, next to a used MERV 8 standard from the same home. Same 90-day run time. The MERV 8 had caught the stuff you can see — lint, visible dust, a few pet hairs. The MERV 13 was gray-black with the stuff you can't. Fine smoke. Sub-micron allergens. Mold spores. Bacteria-carrying particles. All of it was sitting in the filter instead of your family's lungs.

That's the difference a MERV 13 makes. And after manufacturing filters for over a decade while serving more than two million households, we're confident saying this: most American homes are running filters that let the worst of it through.

Your HVAC system doesn't just heat and cool your home. It circulates every cubic foot of air inside it, over and over. Your walls keep nothing out once contaminants are already in. The only thing standing between your family and what's floating in that air is the filter in your media cabinet. If your home has a BDP media cabinet and you've been running MERV 8 or lower, this page explains exactly what you've been missing — and what's been getting through.

TL;DR Quick Answers

What Is a MERV 13 20x20x5 BDP Air Filter?

A MERV 13 20x20x5 BDP air filter is a 5-inch deep pleat replacement filter designed for BDP media cabinet HVAC systems. It captures airborne particles as small as 0.3 microns — including dust, pet dander, mold spores, pollen, fine smoke, and bacteria-carrying droplets — at the filtration tier the EPA and ASHRAE recommend for occupied residential buildings.

Nominal size: 20x20x5 | Actual size: 20.75 x 20.25 x 5.25 inches Replaces BDP part numbers: P102-2020, P102-2020BB, B2-1056, M2-1056 Compatible housing models: CMF2020, P102-MF14B Also fits: Amana, Coleman, Goodman, Maytag, York, and other systems using the same media cabinet housing format Filter lifespan: 90 days for most households; inspect at 60 days in homes with pets or allergy sufferers Made in the USA | Ships within 24 hours

After manufacturing filters for over a decade and serving more than two million households, we've found that the 5-inch deep pleat format — with up to 50 square feet of electrostatically charged filtration media — captures a volume of fine particulate that a standard 1-inch filter at any MERV rating simply cannot match.

Top Takeaways

• MERV 13 captures particles as small as 0.3 microns — fine smoke, pet dander, mold spores, pollen, bacteria-carrying droplets, and sub-micron allergens that lower-rated filters let pass. It's the right choice for households with allergy sufferers, young children, or elderly family members.

• The 5-inch deep pleat format provides 40 to 50 square feet of filtration media, compared to 5 to 8 square feet for a standard 1-inch filter. That surface area difference is why this format lasts longer and catches more on every air cycle.

• Nominal size is 20x20x5. Actual physical dimensions are 20.75 x 20.25 x 5.25 inches. Always confirm your filter slot dimensions before ordering — a half-inch gap reduces filtration effectiveness more than most homeowners expect.

• Direct replacement for BDP, Payne, and Day and Night media cabinets using part numbers P102-2020, P102-2020BB, B2-1056, and M2-1056. Also compatible with Amana, Coleman, Goodman, Maytag, York, and other systems using the same housing format.

• Replace every 90 days for most households. Homes with pets or allergy sufferers should inspect at 60 days. Low-occupancy homes with minimal pollution sources can often push to six months.

• Electrostatically charged pleated media, dual wire backing, and a recyclable beverage board frame — construction details that matter for performance over a full service life, not just on day one.

• Made in the USA at our facilities in Alabama, Pennsylvania, Texas, and Utah. Ships within 24 hours of your order, direct from our manufacturing facilities to your door.

MERV 13: The Highest Practical Rating for Residential Filtration

MERV stands for Minimum Efficiency Reporting Value, a standardized test developed by ASHRAE, the American Society of Heating, Refrigerating and Air-Conditioning Engineers (air filter). The scale runs from 1 to 16 in residential use. MERV 13 sits at the top of what most home HVAC systems are built to handle, and the jump from MERV 8 isn't a small one.

Here's what each tier captures:

• MERV 8 (Standard): Dust, lint, pollen, and particles down to 3 microns. Basic protection for most households with no specific health concerns.

• MERV 11 (Superior): Adds mold spores, pet dander, and finer dust down to 1 micron.

• MERV 13 (Optimal): Captures sub-micron smoke, smog, bacteria-carrying droplets, fine allergens, and particles as small as 0.3 microns — the tier ASHRAE and the EPA recommend for managing airborne pathogens in occupied buildings.

At MERV 13, the electrostatically charged pleated media works like a magnet for airborne particles. As air moves through, the charged fibers pull oppositely charged contaminants out of the stream before they reach your family's lungs. Hospitals use this filtration standard. Schools use it. You can bring it home, built to fit your BDP system, made right here in the USA.

Why the 5-Inch Deep Pleat Design Outperforms Standard 1-Inch Filters

Filter depth isn't a marketing spec. It's the physical reason this format performs so much better than the 1-inch filters most households default to.

• Surface area: A 5-inch deep pleat filter gives you 40 to 50 square feet of filtration media. A standard 1-inch provides roughly 5 to 8 square feet. That's up to ten times the working surface on every air cycle.

• Longer service life: More media means particles spread across a far larger footprint before the filter loads up. Most households replace this filter every 90 days; low-occupancy homes with cleaner air can often go six months.

• Proper fit for BDP systems: BDP media cabinets are built for 5-inch depth. A thinner filter creates bypass gaps — channels of unfiltered air that route around the media entirely and straight into your home. The 5-inch format fills the cabinet correctly and forces all air through the filtration media, every single cycle.

In our experience manufacturing deep pleat filters across millions of units, the 5-inch format wins on both particle capture and system efficiency. Not because the MERV rating is higher — because the physics of surface area make it genuinely harder for particles to get through.

Compatibility: Made for Your BDP System

This filter replaces the media in BDP cabinet air cleaners. Confirm your fit against these specs:

• Nominal size: 20x20x5

• Actual size: 20.75 x 20.25 x 5.25 inches

• BDP part numbers replaced: P102-2020, P102-2020BB, B2-1056, M2-1056

• Compatible housing models: CMF2020, P102-MF14B

• Also fits: Amana, Coleman, Goodman, Electro-Air, Gibson, Maytag, Nordyne, Totaline, and York systems using the same media cabinet housing format

Not sure if your slot takes a 5-inch filter? Pull out your existing filter and check the dimensions printed on the frame. If the label is gone or unreadable, measure your filter slot directly before ordering. A proper seal matters more than most homeowners realize — even a half-inch gap can let a meaningful amount of unfiltered air bypass the media entirely.

Construction That Holds Up

Not every MERV 13 filter is built to the same standard. Here's what you get with Filterbuy:

• Electrostatically charged pleated synthetic media that attracts and holds particles rather than simply blocking them, improving capture efficiency with less pressure drop

• Dual reinforced wire backing that keeps pleats evenly spaced and structurally sound under high airflow — inferior construction leads to media sag, which creates bypasses over time

• Beverage board frame (recyclable) that resists heat and humidity without warping, maintaining a proper seal in your cabinet for the filter's full service life

• Made in the USA at our facilities in Alabama, Pennsylvania, Texas, and Utah, shipped to your door within 24 hours of ordering

"After manufacturing filters across more than two million households, we've learned that the upgrade homeowners regret most isn't switching to MERV 13 — it's the months they waited before they did."

- Filterbuy Team

Essential Resources for BDP HVAC System Owners

Seven resources worth bookmarking — covering filter sizing, the MERV standard, indoor air quality data, and the health context behind why MERV 13 matters for your household.

1. How to Find the Right Air Filter Size for Your System

Source: filterbuy.com/resources/air-filter-basics/air-filter-sizes-ac-size/

Before you order, confirm your slot dimensions. This Filterbuy resource walks you through nominal vs. actual sizing so you get a proper seal and full filtration performance every time.

2. ASHRAE Standard 52.2 — MERV Rating Methodology

Source: ashrae.org

MERV is an ASHRAE standard, not a marketing claim. This resource explains how filters are tested across three particle size ranges and what a MERV 13 rating certifies.

3. EPA: The Inside Story — A Guide to Indoor Air Quality

Source: epa.gov

The EPA's foundational guide to what's in your home's air, where it originates, and what HVAC filtration actually does about it.

4. CDC: Asthma Data and Surveillance

Source: cdc.gov/asthma-data

Current national data on asthma prevalence across adults and children — context for why MERV 13 filtration matters for the roughly 25 million Americans living with the condition.

5. Wikipedia: Air Filter

Source: en.wikipedia.org/wiki/Air_filter

A clear explanation of how air filters work, how MERV and related rating systems compare, and the mechanics behind particle capture in HVAC media.

6. Building America Solution Center: High-MERV Filters

Source: basc.pnnl.gov/resource-guides/high-merv-filters

A DOE-backed resource covering MERV 13 compatibility, pressure drop considerations, and system design — directly useful for homeowners evaluating whether their BDP system can support this upgrade.

7. EPA: Why Indoor Air Quality Is Important to Schools

Source: epa.gov/iaq-schools

The EPA's IAQ guidance for schools, relevant for any home with children. Documents why indoor pollutant levels can run 2 to 5 times higher than outdoor levels — and what active filtration management does about it.

What the Data Shows About Indoor Air Quality and Respiratory Health

Americans spend approximately 90% of their time indoors, where concentrations of some pollutants are often 2 to 5 times higher than typical outdoor concentrations.

Source: U.S. Environmental Protection Agency — Indoor Air Quality (epa.gov)

Both the EPA and ASHRAE recommend a minimum filter rating of MERV 13 for managing airborne pathogens — including viruses and bacteria — in occupied residential buildings.

Source: Building America Solution Center — High-MERV Filters, U.S. Department of Energy (basc.pnnl.gov)

Approximately 25 million Americans — including more than 6 million children — currently live with asthma, a condition directly aggravated by the fine particulate matter and allergens MERV 13 filtration is built to capture.

Source: CDC — Asthma Surveillance Data, National Health Interview Survey (cdc.gov)

Our Take: Stop Running a Filter That Wasn't Designed for This

We've pulled thousands of used filters off returns. We know what MERV 8 catches after 90 days, and we know what MERV 13 catches after the same 90 days in the same home. The gap is visible. It's the kind of visible that makes you rethink every month you run the cheaper filter.

The MERV 13 20x20x5 BDP air filter is worth it for homeowners who take air quality seriously — even though it costs more than a standard option and won't turn up on a big-box shelf. It's the most effective filtration your BDP media cabinet system is designed to support, and it lasts three to six times longer than fiberglass throwaway filters most households settle for.

If you're running MERV 8 or lower in a BDP cabinet right now, you're catching the big stuff. The fine smoke, the sub-micron allergens, the bacteria-carrying droplets — those are getting through on every pass. Invisibly. The MERV 13 is what stops them.

We built this filter because we believe the air your family breathes at home deserves the same filtration standard that hospitals and schools demand. In our experience, no other decision you make about your HVAC system has a more direct impact on what's actually in the air you breathe every day.

Here's What to Do Right Now

1. Check your filter label. Pull out your existing BDP filter and look for the nominal size: 20x20x5. The actual dimensions should read 20.75 x 20.25 x 5.25 inches. If the label is gone or the dimensions don't match, measure your filter slot before ordering.

2. Pick your pack size. Pack pricing drops your per-filter cost by up to 47%. Most households go through two to four filters a year, so ordering in a pack of 2 or more is the straightforward move.

3. Mark your calendar for 90 days out. Set a reminder from the day you install. Homes with pets or allergy sufferers should check at 60 days. An overloaded filter cuts both airflow and filtration performance — two easy problems to avoid.

4. Set up Auto Delivery. Our Auto Delivery program ships your next filter at the interval you choose and saves you 5% on every order. You'll never have to remember a filter change again.

5. Install it and breathe better. Less than two minutes, no tools, real difference in what your system stops.

Frequently Asked Questions

What is the actual size of the 20x20x5 BDP air filter?

The 20x20x5 is the nominal size — the rounded number printed on the frame and used for ordering. The actual physical dimensions are 20.75 x 20.25 x 5.25 inches. That gap is intentional across the industry: the slightly smaller actual size lets the filter slide into the housing without binding. Check your actual slot dimensions before ordering, especially if you're switching brands. A filter that's too small creates bypass gaps; one that's too large won't seat correctly.

What HVAC systems are compatible with this filter?

This is a direct replacement for BDP, Payne, and Day and Night media cabinet air cleaners, including housing models CMF2020 and P102-MF14B. It replaces BDP part numbers P102-2020, P102-2020BB, B2-1056, and M2-1056. It also fits Amana, Goodman, Coleman, Electro-Air, Five Seasons, Gibson, Maytag, Nordyne, Totaline, and York systems using the same 20x20x5 media cabinet housing format. If your system uses a different brand but the same housing dimensions, this filter will work.

How often should I replace my MERV 13 20x20x5 BDP filter?

For most households: every 90 days. Homes with pets or allergy sufferers may need to be replaced at 60 days, because higher particle loads fill the media faster. Low-occupancy homes with clean air and minimal pollution sources can sometimes stretch to six months. The most reliable practice is to inspect the filter monthly. If the media looks visibly gray or dark, replace it regardless of where you are on the schedule. A clogged filter restricts airflow and drops filtration performance — both problems with real costs to your system and your air quality.

Is a MERV 13 filter safe for my BDP HVAC system?

Yes — when used in a media cabinet built for 5-inch deep pleat filters, MERV 13 won't create problematic airflow restrictions. The 5-inch depth is the key: the large surface area of the deep pleat design compensates for the higher filtration density, maintaining a pressure drop comparable to thinner, lower-rated filters. If your system uses standard 1-inch slots, check your HVAC manual before upgrading to MERV 13 — higher ratings in thin filters can restrict airflow in systems not built for that resistance. BDP media cabinet systems are specifically designed for this depth and this performance level.

What pollutants does a MERV 13 air filter capture?

A MERV 13 filter captures airborne particles as small as 0.3 microns, including: dust, pet dander, mold spores, pollen, fine smoke and wildfire smoke particles, smog, bacteria-carrying droplets, and sub-micron allergens that trigger asthma and respiratory sensitivity. This is the filtration tier ASHRAE and the EPA recommend for managing airborne pathogens in occupied buildings — the same standard applied to healthcare and school environments.

What is the difference between MERV 8, MERV 11, and MERV 13?

MERV 8 handles particles down to about 3 microns — dust, lint, pollen, dust mites. MERV 11 extends that to approximately 1 micron, adding mold spores, pet dander, and finer dust. MERV 13 goes to 0.3 microns, adding fine smoke, smog, bacteria-carrying droplets, and the sub-micron allergens that most affect allergy and asthma sufferers. Each step up is a tested, certified improvement in particle capture efficiency — not a marketing tier. For any household with health-sensitive occupants, MERV 13 is the practical ceiling that delivers hospital-grade filtration without overworking a system properly designed for it.

How do I install the MERV 13 20x20x5 BDP filter?

Less than two minutes. Turn off your HVAC system. Open the media cabinet and slide out the old filter — note the airflow direction arrow before you toss it. Slide in the new Filterbuy MERV 13 filter with the arrow pointing toward the system, in the same direction as the old one. Close the cabinet. Turn the system back on. No tools, no guesswork. Arrow orientation matters though: installing a filter backwards cuts efficiency and can damage the media over time.

Stop Running a Filter That Can't See What You're Breathing — Upgrade to a MERV 13 20x20x5 BDP Air Filter Today

The invisible particles floating through your home right now — fine smoke, pet dander, mold spores, bacteria-carrying droplets — are exactly what this filter was built to stop. Order yours from Filterbuy, made in the USA and shipped to your door in 24 hours.
